Grids

You can use grids to vary the value of a field based on two other fields.

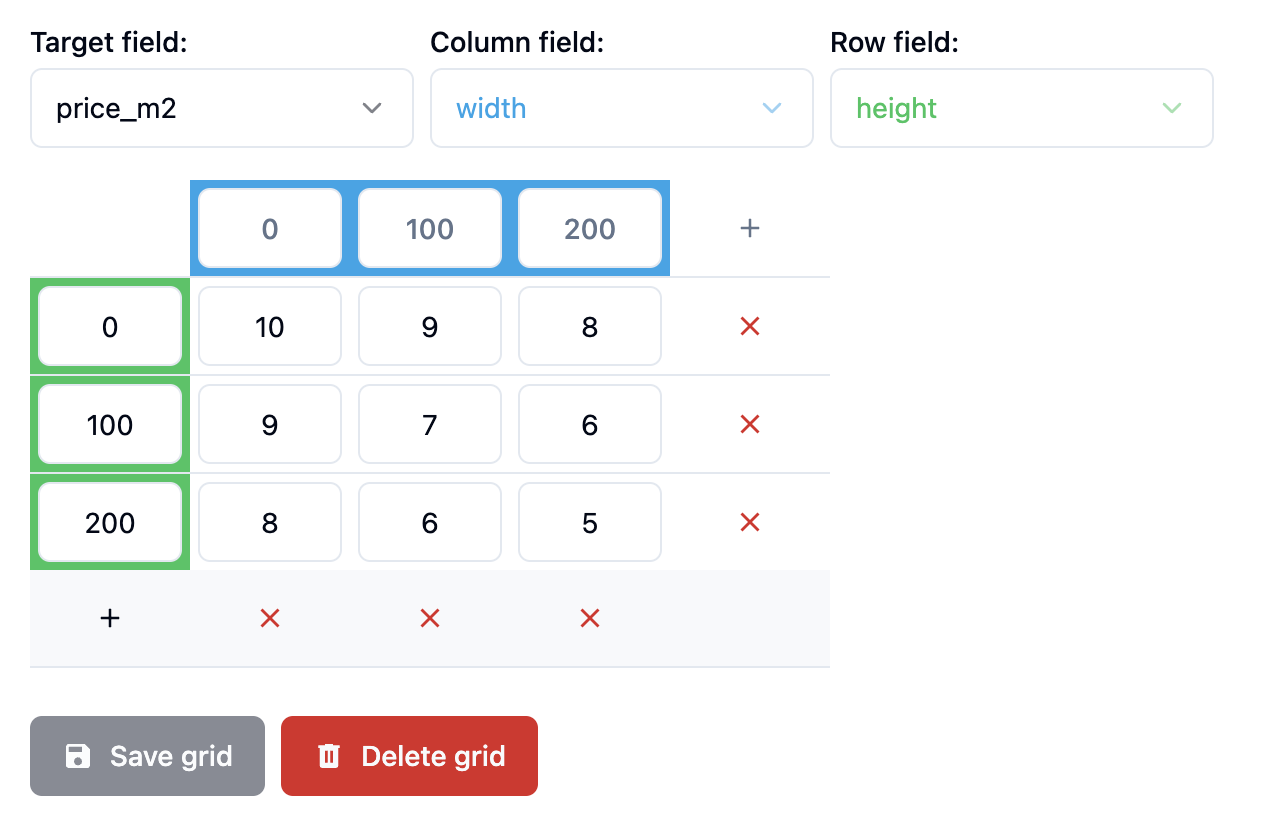

In this case, the price_m2 field is being varied based on the width and height fields.

A column is picked when the column field is equal or greater than the column value.

The same logic applies to the row field.

Here are some examples to clarify this:

• width equals 10: The first column is picked because 0 <= 10 < 100
• width equals 100: The second column is picked because 100 <= 100 < 200

If the column field is greater than the last column value, the last column is picked.

• width equals 250: The third column is picked because 200 <= 250

So following this logic, if the width is 75 and the height is 150, the price_m2 will be 6.

TIP

It is recommended to use the Grid formula function instead of the Grids feature because it's more efficient and more flexible.
